Geek

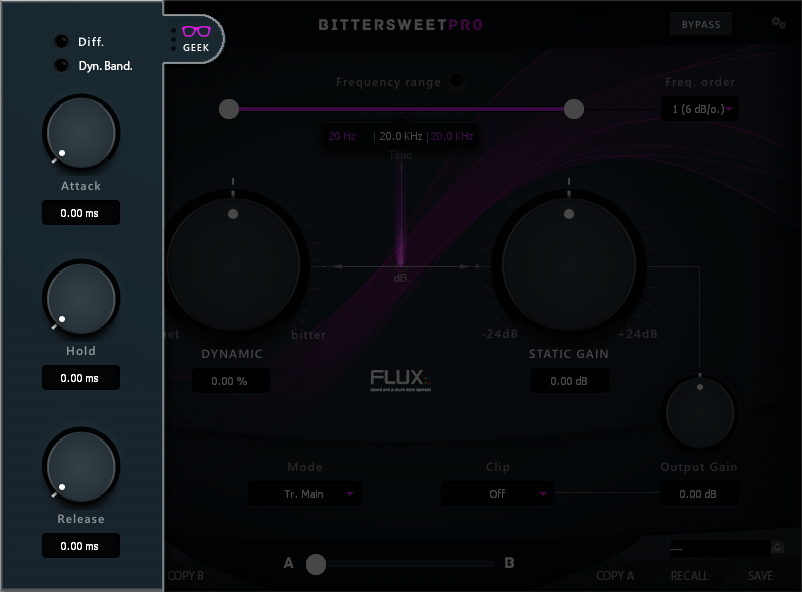

Clicking the Geek glasses opens a window with an additional range of parameters providing extended control of the transient processing envelope.

Diff. / Dyn. Band	Hold
Attack	Release

Diff.

Diff. is a key listener for the Difference between input and output signal (at the final output, after the clipper).

Value Range: Enabled/Disabled
Default Value: Disabled

Bandwidth

Value Range: Static BW/Dynamic BW/Flat Sum
Default Value: Static BW

Static bandwidth provides a constant Q factor, no matter of the gain factor of the filter. It’s computed by having a constant bandwidth at +- 3 dB from 0 dB.

Dynamic bandwidth provides a dynamic Q factor, dependent on the gain factor of the filter. It’s computed by having a constant bandwidth at +- 3 dB from peak levels of the filter.

Flat Sum is a more traditional way of computing the Q factor. The bandwidth is constant for the gain factor divided by two.

Attack

Adjusts the attack time for the transient processing envelope.

Value Range: 0.00 ms / 200.00 ms
Default Value: 0.00 ms

Hold

Adjusts the hold time for the transient processing envelope.

Value Range: 0.00 ms / 200.00 ms
Default Value: 0.00 ms

Release

Adjusts the release time for the transient processing envelope.

Value Range: 0.00 ms / 500.00 ms
Default Value: 0.00 ms
