Stereo Tool

Stereo Tool is the perfect tool for correcting the stereophonic image of audio tracks and buses, both for mixing and mastering. The integrated goniometer allows you to easily visualize and identify problems with your stereo signals.

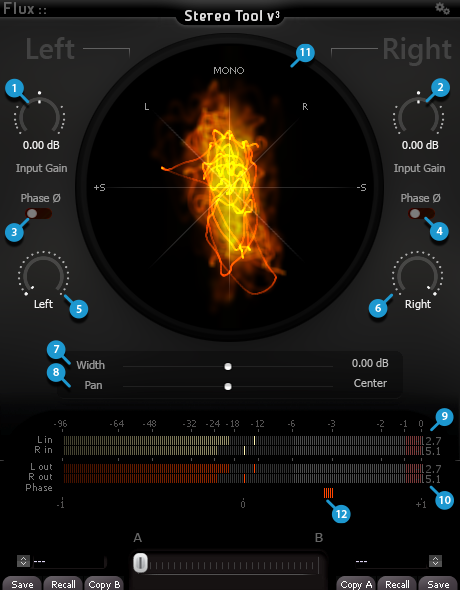

Channel adjustment parameters

  • 1 - Left channel input gain trim
  • 2 - Right channel channel input gain trim
  • 3 - Left channel phase invert
  • 4 - Right channel phase invert
  • 5 - Left channel pan pot
  • 6 - Right channel pan pot

Stereo image adjustment parameters

  • 7 - Stereo width Moving the slider to the right will enlarge the stereophonic image. To the left the image will be tightened.

  • 8 - Stereo pan/rotation
    Refocuses the stereo image

Visualization and metering

  • 9 - Input peak meter
  • 10 - Output peak meter
  • 11-12 - Goniometer
    The goniometer gives informations about the phase between left and right channels. It also gives a visualisation of the stereo image width and panning.

Goniometer interpretation

Identify mono signals

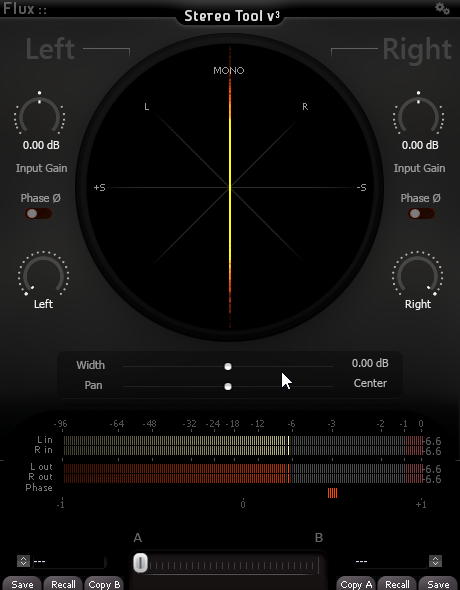

Mono centered

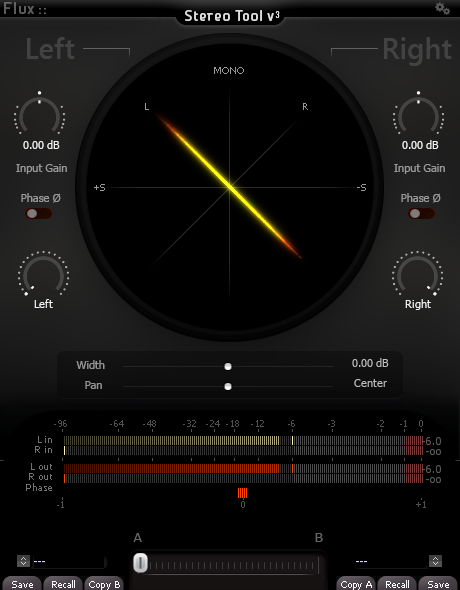

Mono left panned

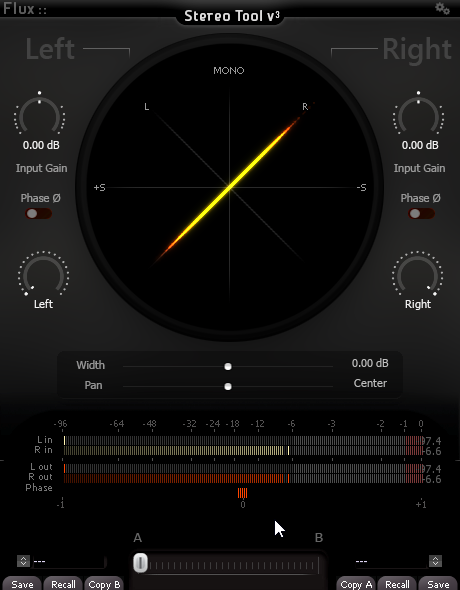

Mono right panned

Identify issues in stereo signal

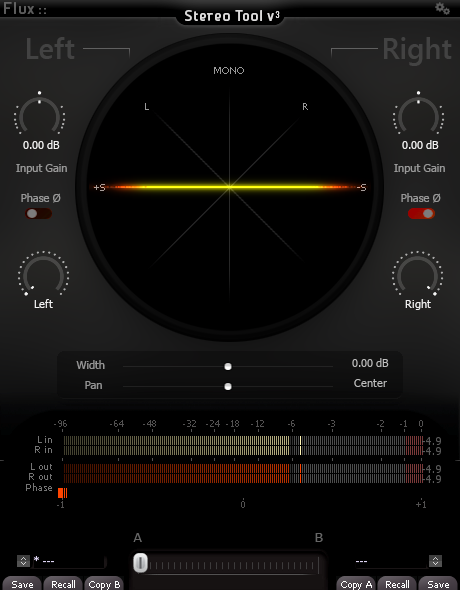

Out of phase

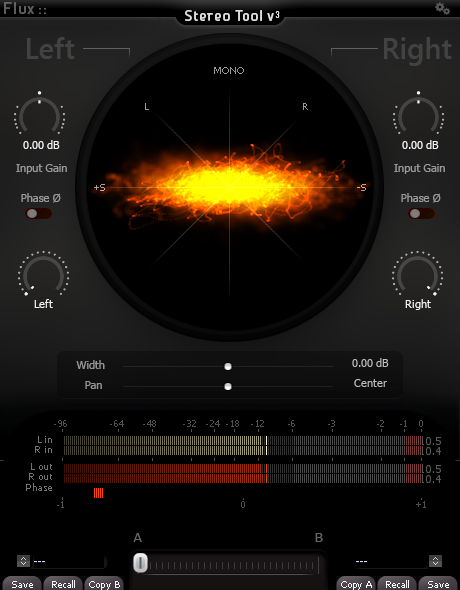

Phase issue/ too wide

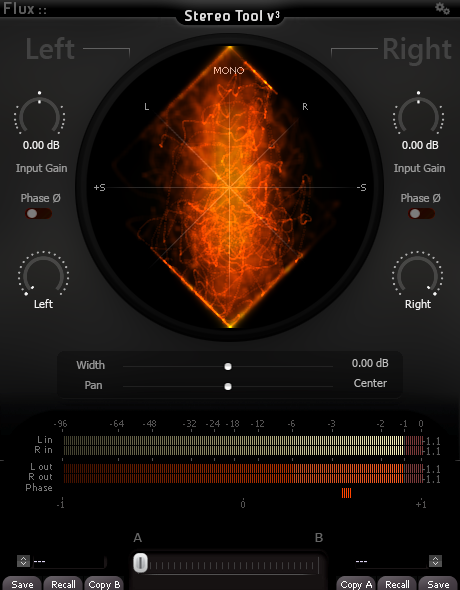

Hyper-compressed signal
