Cross Synthesis

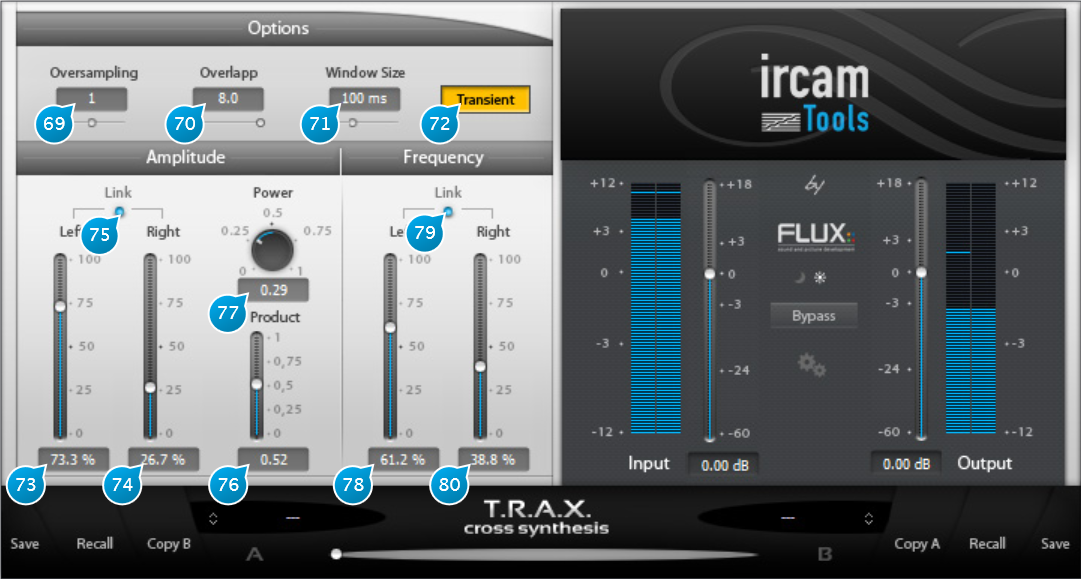

(69) Oversampling

Adjusts the spectral domain oversampling factor, set to zero (none) by default. Increasing this setting can increase the processing the processing quality, depending on the audio material, although at the expense of higher CPU usage, which roughly doubles for every increment.

(70) Overlapp

This determines how much extraction windows overlap during a given time-frame, or in other terms, how often the analysis is updated for a given window size. Increasing this setting usually gives better results but also leads to more CPU resources being used, as more data has to be analyzed. The default setting of 4 is a good trade-off, but you can increase provided you have a reasonably fast machine and hear a noticeable difference.

(71) Window Size

Window size determines the time-frame base used to extract time-localized data in time from the incoming material. It is the most important parameter for all spectral domain signal transformations. It affects the capability of the algorithm to detect and identify the individual components of the signal (sinusoids, noise and transients/onsets) and to treat them independently. As general guidance, window size should be small for fast tempos and larger for slow music and at the same time larger for spectrally dense or low pitched sounds and smaller for spectrally sparse or high pitched sounds. In some cases, e.g. fast orchestral passages (that are spectrally dense and at the same time fast) the spectral and temporal characteristics ask for different windows sizes. In these cases finding the optimal window size requires some experimentation with different settings.

(72) Transient

For the T.R.A.X. Cross Synthesis plug-in, toggles transient processing on and off.

Amplitude:

This sub-panel determines how the output amplitude is affected by the left and right channels.

(73) Amplitude Left

Sets the percentage of the left channel used to derive the output amplitude.

(74) Amplitude Right

Sets the percentage of the right channel used to derive the output amplitude.

(76) Product

Determines the amount of the product of the amplitudes of both channels that will be mixed into the output amplitude.

(77) Power

Exponent of the power law that is applied to the amplitude product. Default value of 0.5 corresponds to a square root, which produces the geometric mean of the amplitudes of both channels and is the setting that best preserves the signal power of the product amplitude spectrum when compared to the original input amplitude spectra. Smaller values of the power control will equalize low and high amplitude components while larger values will amplify the differences in the amplitude spectrum (amplifying spectral components in locations that are strong in both input spectra and suppressing spectral components that are weak in either or both input spectra).

Frequency :

This sub-panel determines the frequency content of the output with respect to the inputs.

(78) Frequency Left

Sets the percentage of the left channel used to derive the output frequency spectrum.

(80) Frequency Right

Sets the percentage of the right channel used to derive the output frequency spectrum.
