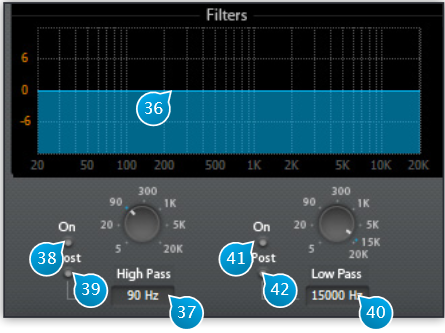

Filters

(36) Filter Curve

The filter curve displays the overall frequency response of the filter section.

(37) High Pass

Inserts a 6dB/octave high pass filter in the signal chain.

(38) High Pass On

Toggles the High Pass Filter in and out.

(39) Post High Pass

Determines whether the filter acts on the input or output signal. When off, which is the default setting, the corresponding frequencies are filtered out prior to analysis and transformation, which can be used to prevent possible tracking errors induced by any excessive rumble or mains interference picked up during recording. If you only want to equalize the signal, enable Post to circumvent this behaviour.

(40) Low Pass

Inserts a 6dB/octave low pass filter in the signal chain.

(41) Low Pass On

Toggles the Low Pass Filter in and out.

(42) Post Low Pass

See 39.
