Wave scope
The wave scope is a simple oscilloscope-type waveform display.

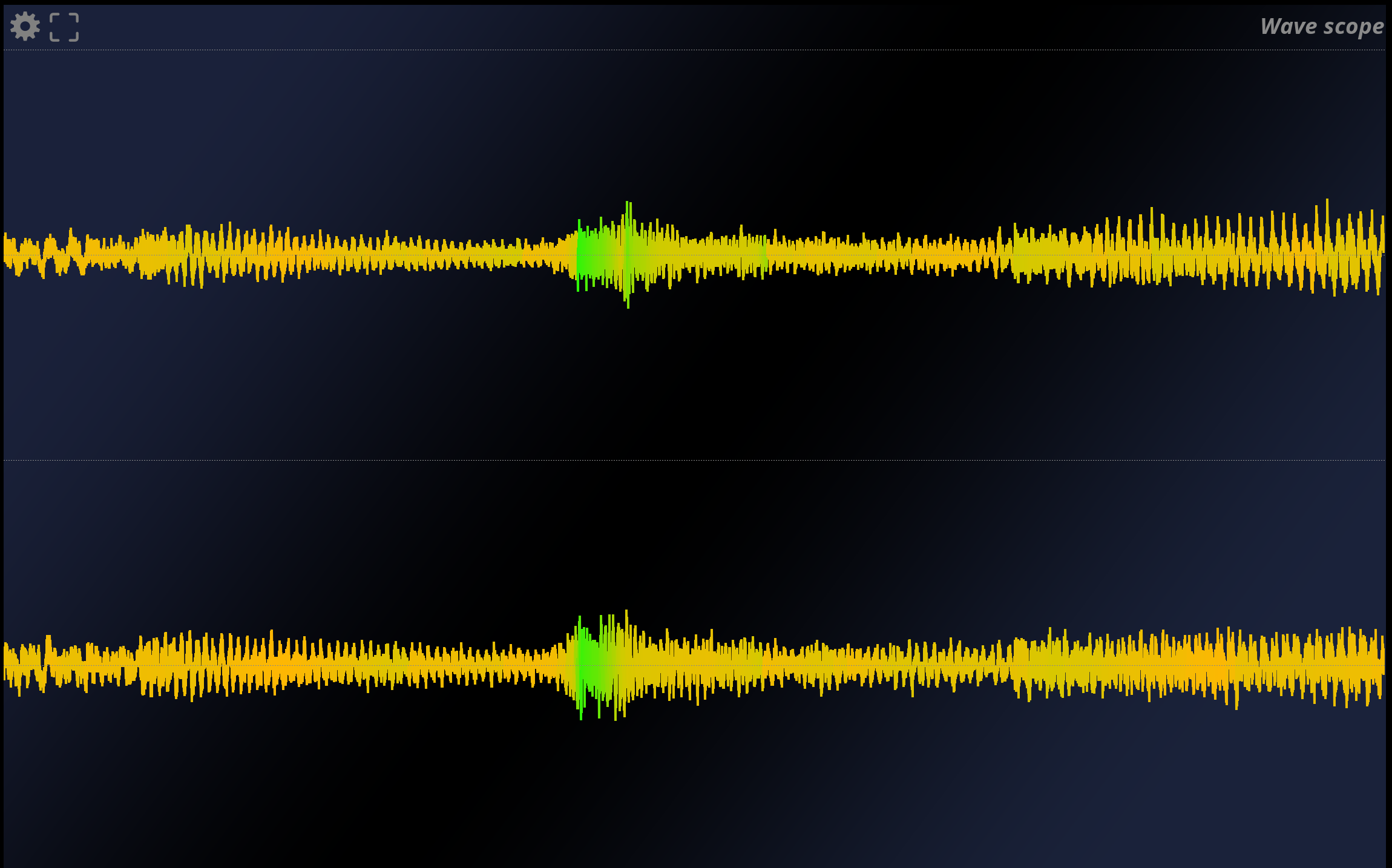

Wave scope display with stereo input.
Settings

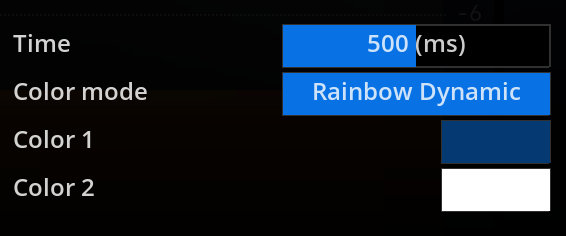

Setup
| Name | Description |
|---|---|
| Input config | Define the input configuration analyzed by this scope. |
| Time | Time window in milliseconds. |

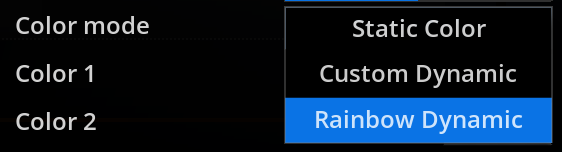

| Color Mode |  Static: Displays the waves using 1 unique static color. Custom Dynamic: Displays the waves according to the transient using a 2 user defined color gradient.1 Rainbow Dynamic: Displays the waves according to the transient using a rainbow color gradient. |

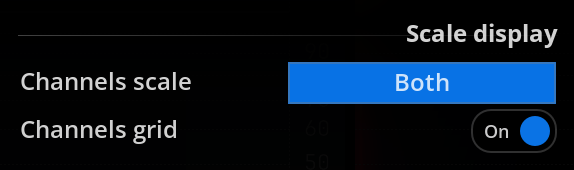

Scale display
| Name | Description |
|---|---|
| Channels scale | Determines the position of the scale |
| Channels grid | Show/hide the display of the grid |
If “custom dynamic” is chosen, user defined “Color 1” and “Color 2” will be used.↩︎
