Speaker Arrangement Editor

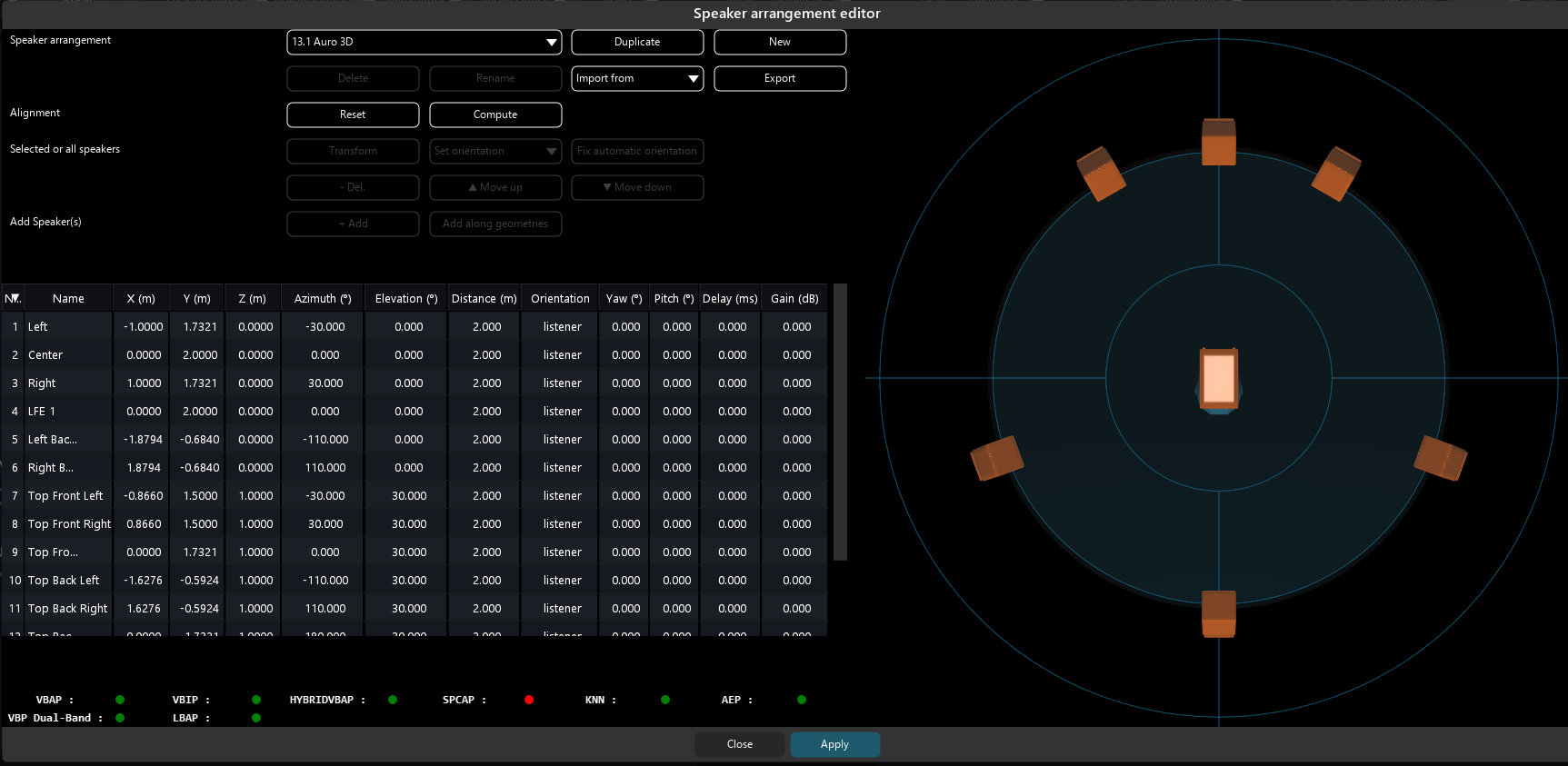

The speaker arrangement editor window showing a predefined 13.1 Auro 3D speaker arrangement.

The speaker arrangement editor offers the ability to prepare the model of the sound diffusion system you are actually using.

When you find yourself working on a custom multi-channel speaker arrangement, the Speaker Config editor is where a model of the sound diffusion system can be defined and stored in the list of speaker arrangements.

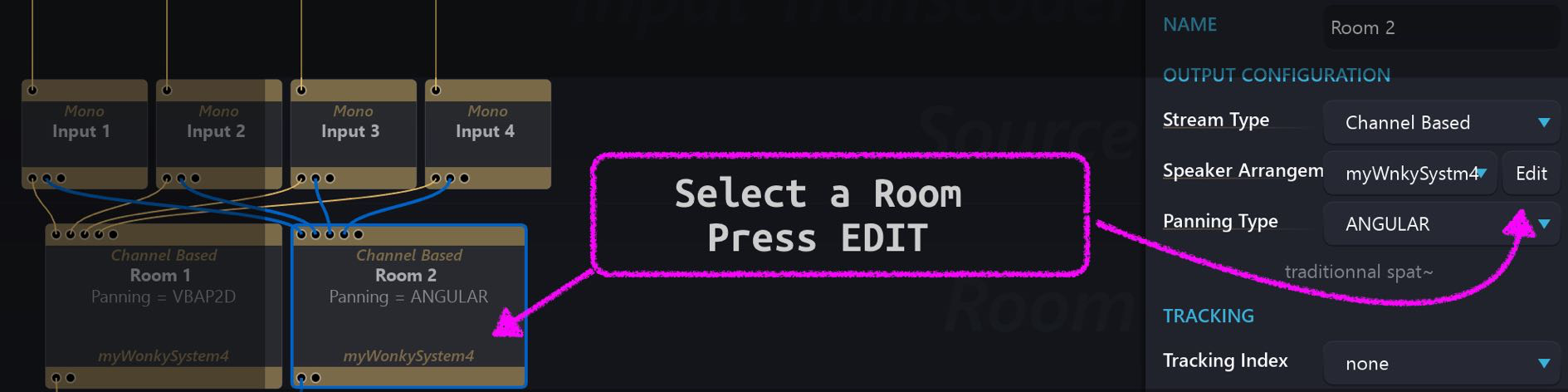

Open the speaker arrangement editor by clicking on the Edit button of a Channel-Based room, by the Speaker Arrangement pull-down menu. Pre-configured arrangements cannot be deleted or modified but can be duplicated (a copy will be generated for editing). A new config can also be created.

Rendering to Speakers

In order for the virtual scene to translate correctly as an immersive sound experience in a speaker format, SPAT needs to have an accurate model of a multichannel speaker arrangement which will be used to map the multichannel information to the destination speakers and render the sound field correctly in a real space. To this end, you will find a large library of standard and specialized speaker arrangements already built into SPAT which can be used in various places throughout the Environment Setup.

Speaker configurations can be used to fit the format of a virtual room to match the actual speaker system being used to diffuse the mix in a real room. Channel-based speaker configurations can also be used to transcode the format of a virtual source into a virtual room. More about this later.

The golden rule when working with multichannel-based audio is that you must be sure to choose exactly the right formats, speaker arrangements and channel routing throughout; otherwise the virtual space will not map correctly into a physical space.

Virtual and Real Diffusion

Successful diffusion of a sound field in space relies on every loudspeaker being assigned correctly to each software-rendered output channel.

A diffusion system could range from a simple pair of headphones to an 18 (Essential) or unlimited (Ultimate) speakers array and anything in between. In some of the more virtualized workflows of SPAT Revolution, you may even be thinking about diffusion in a virtual space on configurations of virtual speaker arrangements and channel-based formats. The same rule for successful diffusion applies here—the diffusion in the virtual room will be compromised and sound off if the channel assignments to the virtual systems are incorrect.

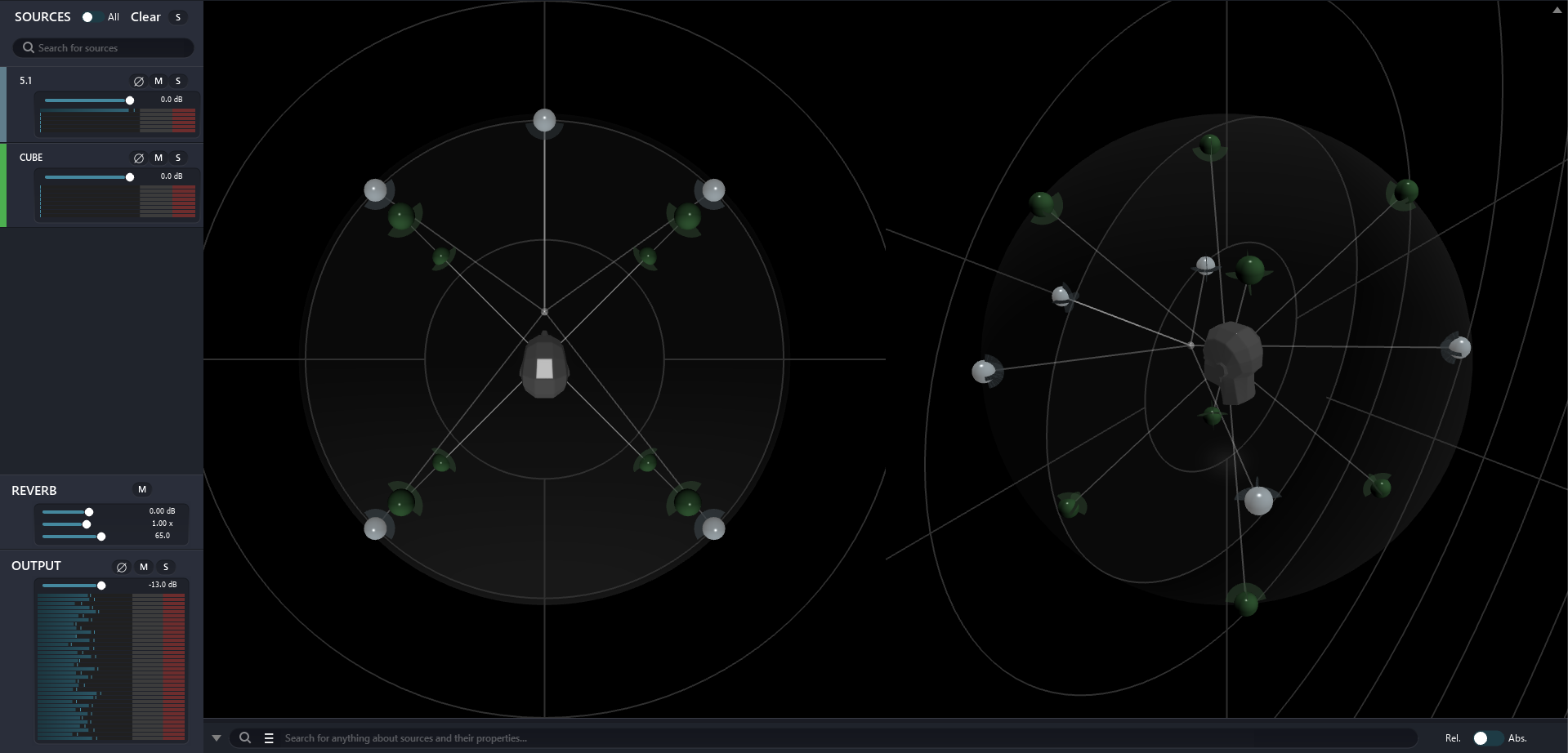

In the above illustration, a virtual 5.1 and a virtual Cube arrangement exist together in a High Order Ambisonic Room, which may eventually be rendered to some other channel-based end format. –>

Creating & editing a speaker arrangement

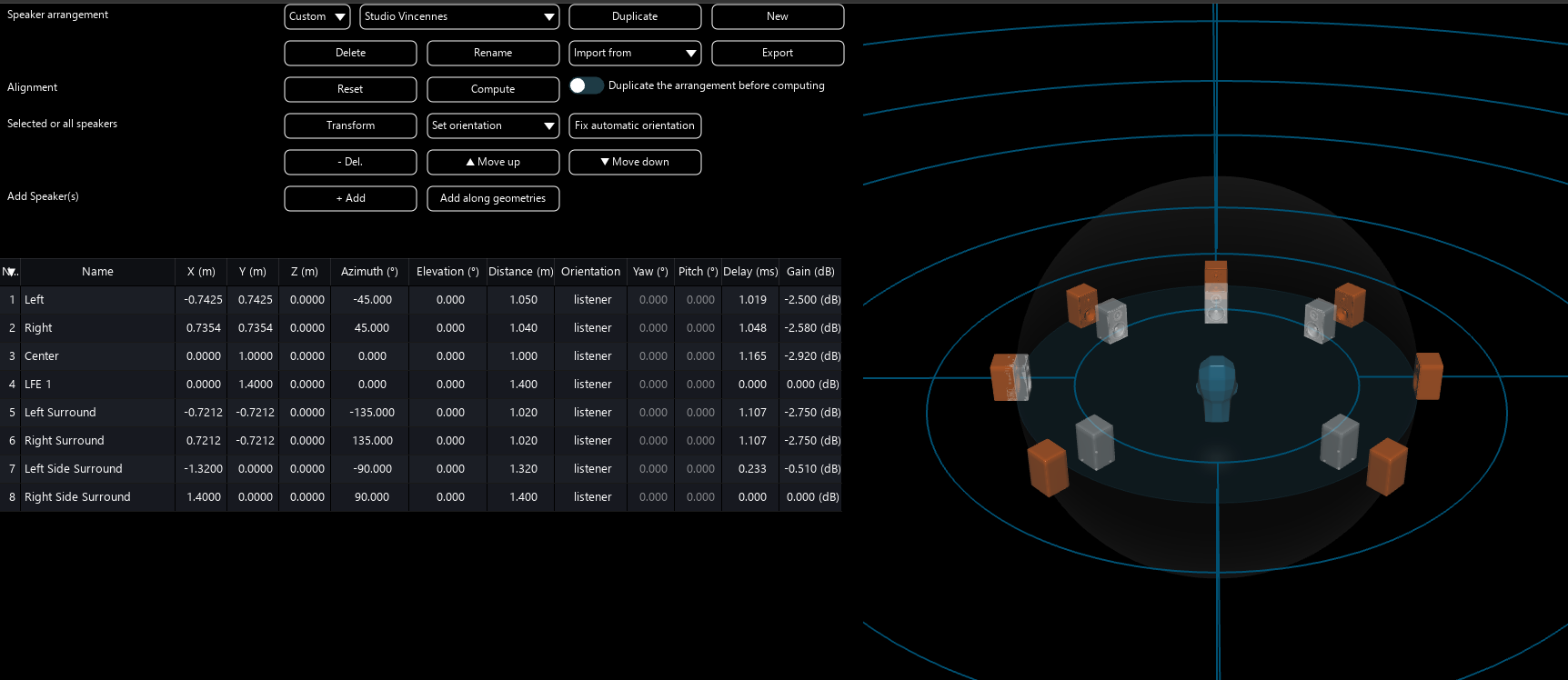

SPAT Revolution_ Speaker Config

While there are many standardized speaker arrays, such as Dolby Surround, Atmos, Auro 3D, DTS, Quad or even stereo, we are in many cases confronted with a very specific speaker positioning.

For such a use case, it is possible to create custom speaker arrangements. Using a well-defined custom speaker arrangement will improve the sound stage and the overall impression of immersion of the audience. We always highly recommend taking the time to measure the position of the speakers of your system and to input them in SPAT Revolution.

Speaker Arrangement section

Arrangement drop-down menu: this menu allows access to a list of all your existing speaker arrangements.

Duplicate: create a copy of the current speaker arrangement.


You cannot overwrite a factory arrangement. Duplicate it before trying to edit it.

New: create a new empty speaker arrangement.

Delete: delete the current speaker arrangement.


There is no confirmation before deleting an arrangement.

Rename: rename the current speaker arrangement.

Import from: allow importing a speaker configuration from a third-party software. See the next section 18.5 for more detail.

Export: open a window to export a selection of speaker arrangements.

Alignment section

SPAT Revolution Speaker Config

Reset: revert the compute process.

Compute: opens a dialog to help to set delay and gain on the speaker arrangement. More information of the dedicated section below 18.4.1

Selected or all speakers section

Transform: modify the selected or all speakers according to a specified transformation. For more information about it, check out the transformation section 19.

Set orientation: set the orientation of selected or all speakers.

Fix automatic orientation: for speakers whose orientation is set to automatic, replace it to real orientation (front, back, listener, custom with the given angle, …) instead of automatic.

Del.: remove the selected speaker(s) in the arrangement.

Move up: move the selected speaker(s) one row above.

Move down: move the selected speaker(s) one row below.

Add speaker(s) section

Add: create a new speaker in the arrangement.

Add along geometries: add new speakers according to a specified geometries.

The speakers list section

Nb.: identify the channel of the speaker.


The SPAT Revolution Essential license limits the total number of channels to 32 input channels and to 18 output channels.

Name: identify the name of the speaker.


To create an LFE channel, simply name one speaker of the arrangement “LFE”. It is possible to create 4 LFEs, naming them “LFE 1”, “LFE 2”, “LFE 3” and “LFE 4”. The corresponding sends button will appear on the source parameters panel.

SPAT Revolution uses speaker naming to sum speaker arrangement.

X (m): defines the position of the speaker on the X-axis, in meters.

Y (m): defines the position of the speaker on the Y-axis, in meters.

Z (m): defines the position of the speaker on the Z-axis, in meters.

Azimuth (°): define the angle of incidence of the source to the center of the 3D space, in the horizontal plane.

Elevation (°): define the angle between the source, the center of the 3D space and the horizontal plane.

Distance (m): define the distance between the source and the center of the 3D space, in meters.

Orientation: define the orientation of the speaker. The default settings is “Automatic”

  • Automatic: default behavior, the yaw and the pitch angles are determined by the shape of the speaker arrangement. It should be the standard orientation of most cases, but can be inefficient on certain specific designs.
  • Listener: the speaker points to the listener’s head
  • Front: the speaker points to the bottom of the 3D view
  • Back: the speaker points to the top of the 3D view
  • Side Left: the speaker points to the left side of the 3D view
  • Side Right: the speaker points to the right side of the 3D view
  • Custom: the user can define the orientation with the yaw and pitch parameters.

The orientation (0°,0°) is pointing to the listener.

Yaw: rotate the speaker around the Z-axis. 0° degree is pointing to the listener. Pitch (°): rotate the speaker in elevation.


Orientation, yaw and pitch are only useful in WFS use case.


Tips: to point down (speaker with positive elevation) or up (speaker with negative elevation) a speaker, set the pitch to 90 menus the speaker elevation value;

Delay (ms): add a fixed amount of latency to a speaker.

Gain (dB): change the sound level of the speaker.


In many cases, it is wiser to let the delay and gain parameters untouched, and let the “compute” function do the job.

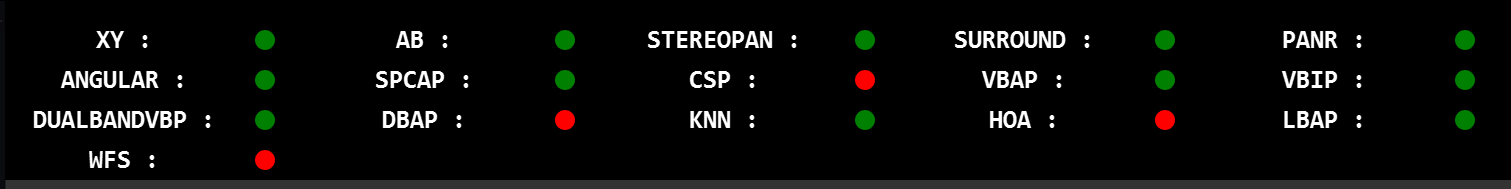

Panning Type Tips section

Here, we can find information about which pan law is available in regard to our speaker array. Some explanations are displayed to help understand why some pan laws aren’t available.

There are five colors associated with the possible panning types:

  • Green: this panning type is valid and functional with the selected speaker array.
  • Orange: this panning type is somewhat functional, but there certainly is a better solution available. Hovering the panning type with the mouse will display a message to help improve the arrangement.
  • Red: this panning type is not functional with the selected speaker array. Hovering the panning type with the mouse will display a message to explain why it does not work.
  • Grey: Two speakers are located at the same spot (i.e. the speakers are coincident). The speaker arrangement is incorrect.


Error displayed with HOA panning type.

For more information about each pan law, check out the section Panning algorithms 8.

Understanding when a speaker arrangement, or a sound scene, is 2D or 3D

We can quickly be tempted to create very precise speaker arrays, including height information where it may not be necessary and can do more harm than good.

The rule of thumb is to think in plan and not in absolute height. If speakers are meant to reproduce the same sound plan, they should have the same height. Also, the main sound plan has to be set at a height of zero meters. If you try to validate a speaker arrangement that only has one plan and is not set to a height of 0, it will correct it automatically. It also applies to older sessions that were created before SPAT Revolution had this feature.

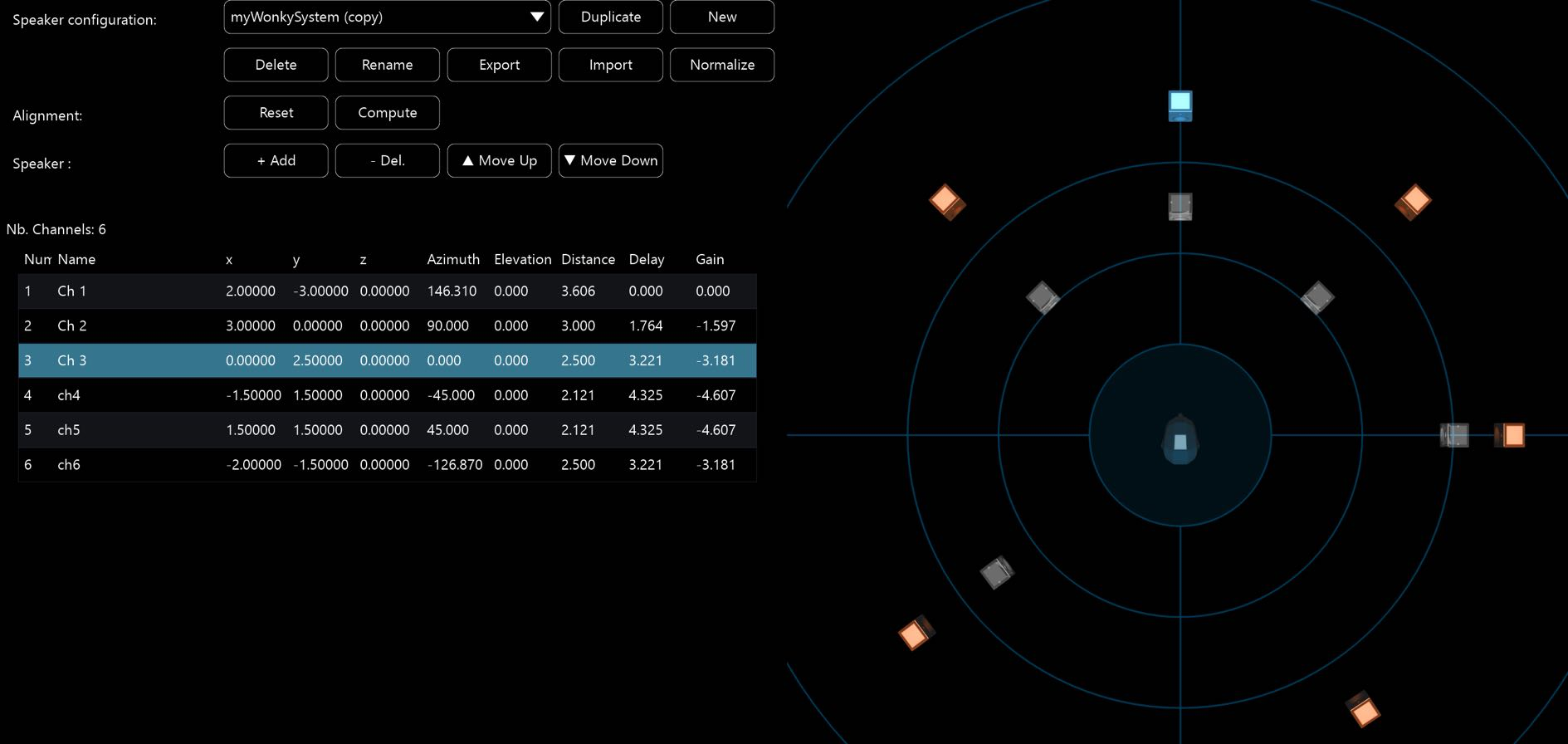

The speakers alignments section lets SPAT Revolution compute the delay and gain for the selected speaker arrangement. To help to deal with them with complex systems, several methods are provided, allowing adapting your alignment according to the wanted behavior:

  • Spherical: will align the speaker according to a sphere. The farthest speaker will determine the sphere radius. This is the old behavior of the compute feature.
  • Cartesian with minimum delay: will align the speakers according to straight lines.
  • Cartesian with symmetry: will align left/right and front/back speakers according to symmetrical straight lines. A typical use case will be to help to deal with an asymmetrical arrangement.

Alignment can be made on all arrangement, but also selecting a certain speaker orientation type. It is possible to select the speakers on each the alignment will be done according to their orientation.

Automatic Scaling

When going on the road with a show, the idea of SPAT Revolution is to always keep the same session, which stores our input routing, our mixing metadata and all of our snapshots. But in such use cases, each time the venue changes, the speaker arrangement changes too and its size (or diameter) will likely be different each time.

As we use absolute, we solve this common use case by using an automatic scaling process.

If you change the speaker arrangement of a room where you already routed some sources, the global sound scene could be scaled to the new speaker arrangement.

For example, if you first created your session with a speaker arrangement with a diameter of four meters, and then deploy it in a venue where the actual diameter of the sound system is eight meters, then all the source positions, incoming automation, and snapshot data will be scaled by a factor of two.

Speaker arrangements examples

Here are some examples of speaker configurations you can find in some venues, like RadioFrance Studio 115, Montreal Satosphere, or Berlin Planetarium. To discover it into SPAT Revolution, copy the python file on your desktop: Speaker arrangements for various domes and planetariums.

Speaker arrangement Python file

Writing the speaker arrangement on a Python file provides the erasing of the data. It is recommended to do so on fixed installation, or if you don’t want to lose the speaker arrangement data. If you want to build your own custom speaker arrangement script, explanations are provided in the following Python file: Custom Speaker Arrangement Script.

Import Speaker Array

For systems that are regularly changing such as in live production, setting up the speaker configuration in the simulation software and then repeating it in the immersive software is not the most fun part!

To ease this part of the setup, you can now import from the software of Nexo (NS-1), Adamson (Blueprint), d&b (ArrayCalc), CODA Audio (System Optimiser), and the standard EASE software.

This import is integrated into the Speaker Arrangement editor where you can find the Import from button.

image To begin is the FLUX IOConfig. This is the FLUX:: speaker arrangements file format. This can be a great tool to export and save your FLUX:: arrangements or to import an arrangement into another session / computer system.

In SPAT Revolution, it is important to understand that speaker arrangements DO follow the session file. So if you are opening a .JSON with an arrangement new to your system, SPAT Revolution will copy that arrangement and it will then be part of the user-created arrangements. In consequence, this new arrangement will be accessible for any new SPAT Revolution session.

If you care to know where these arrangements are stored, Document/FLUX SE/Spat Revolution/Config is where your master IOConfig file, containing all the user-defined arrangements, is located. Note that the repertory Document/FLUX SE/Spat Revolution is now the folder that contains all of your SPAT preferences. If you ever need to erase your preferences, for troubleshooting purposes, remember to export your speaker arrangements first, and then back them up outside this folder.

How to import a speaker configuration from


Since 23.08, XLD files coming from Ease are supported and recommended. To export such a file, in EASE software, open the project, and click on File, Export Asci Files, Loudspeakers. The .xld created file can now be imported into SPAT Revolution

Legacy (.txt file): In EASE software, open the project, and click Edit Project Data on the upper toolbar. In the new window, click on the Edit toolbar button, then Loudspeakers, File and finally Send table to file.

A popup window will open, asking to use only selected rows. If you want to export all the speakers, click on NO. Select the target catalog for the text file you are going to generate, and click on save. The newly created file can now be imported into SPAT Revolution.


Chances are the reference point used in EASE won’t be the central reference point typically used in SPAT. Simply use the Transform speaker arrangement option. Typical, you will want to offset X / Y position or Rotate the arrangement 180 degrees.

Nexo NS-1

In NS-1, to export all the speakers: Go to the Speaker Positions Windows, Speakers/Speakers Position or Ctrl + P. Select all the Speakers, and click on Export, File.... This will export a .txt file, readable by SPAT Revolution.

Adamson BluePrint

In BluePrint, to export all the cabinets: Go to the Cabinet tab. In the line Cabinet Group, click on the 4th button, Export All Cabinets. This will export a .arys file readable by SPAT Revolution.


d&b ArrayCal

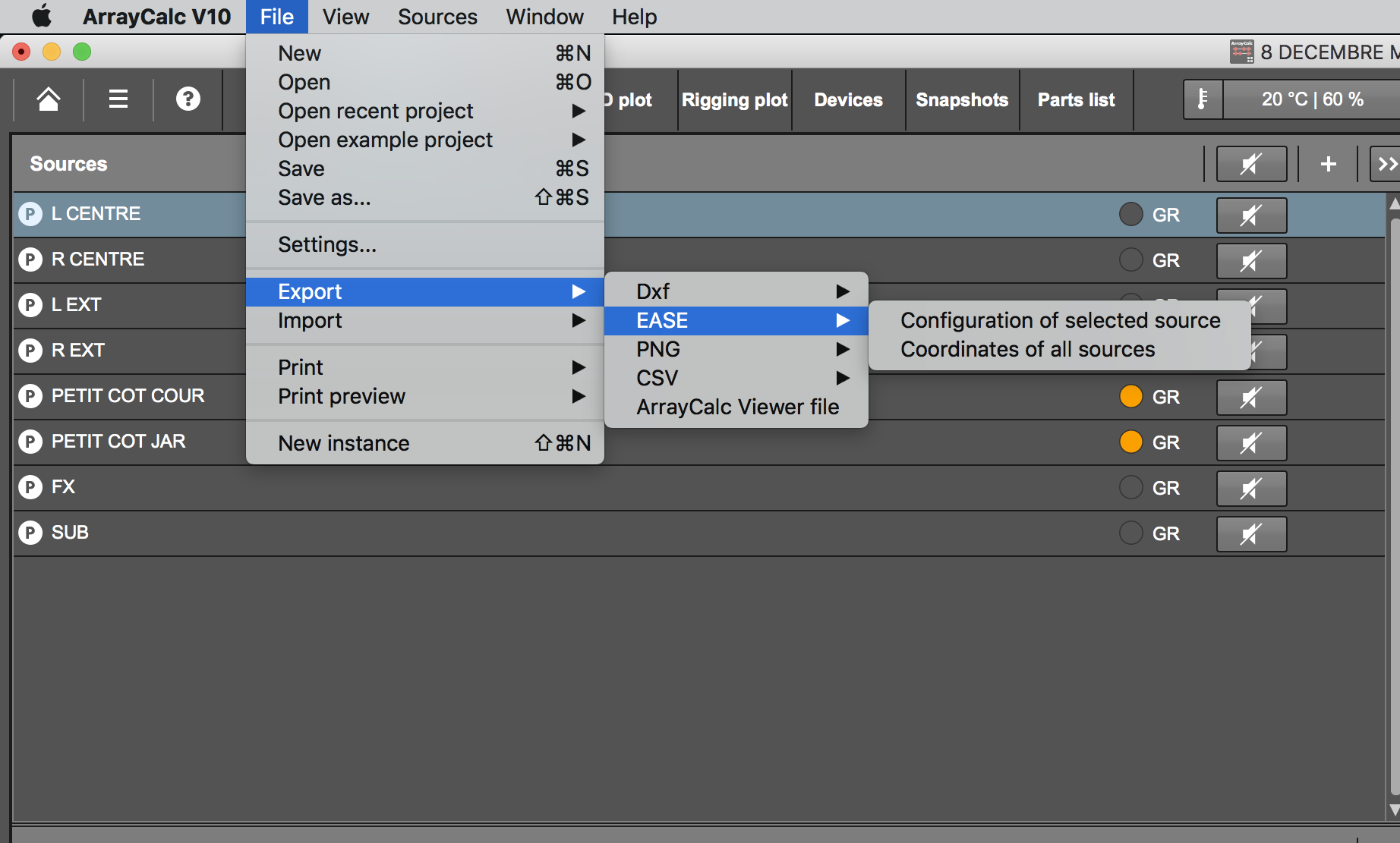

In ArrayCal, export all the sources with “Files/Export/EASE/Coordinates of all sources”. This will export a .xld file readable by SPAT Revolution.




Speaker import from Excel template
